1 PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD PCIE TO SERIAL DB9

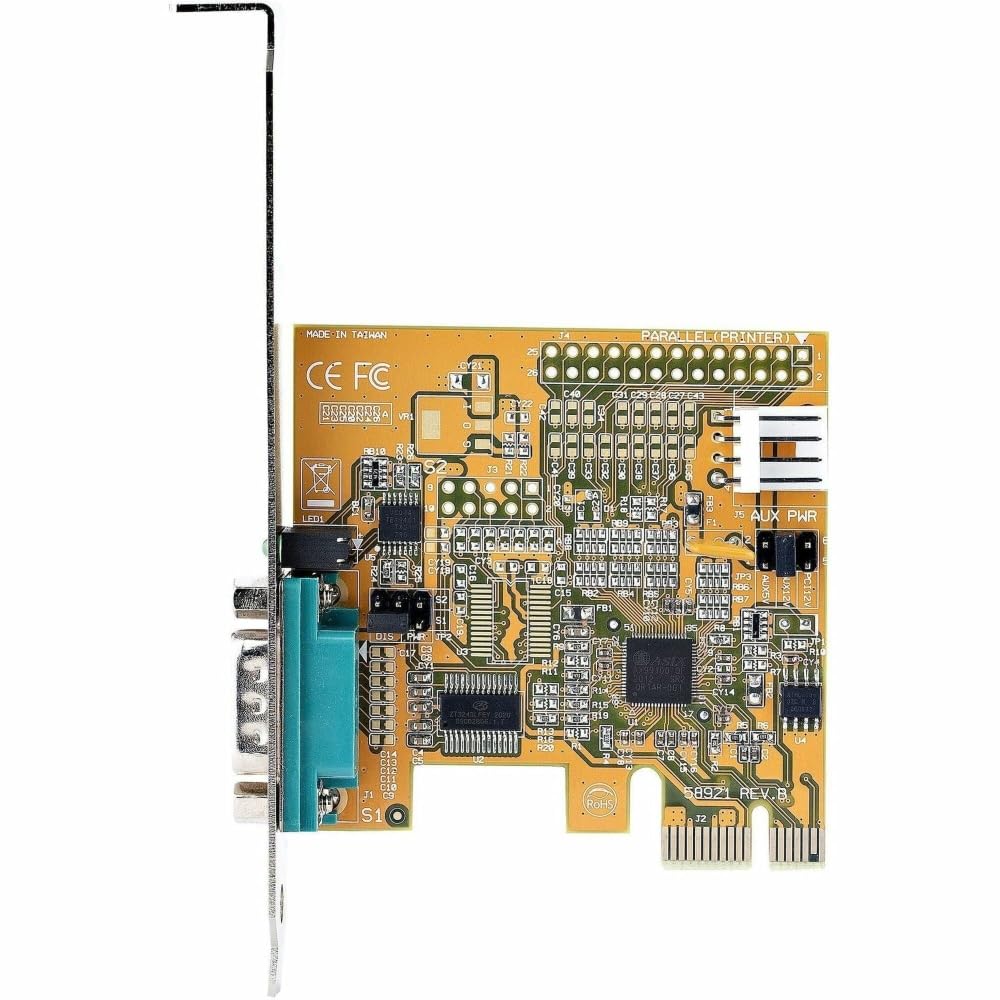

StarTech 1-Port PCI Express Serial Card

The StarTech 1-Port PCI Express Serial Card (Model: 11050-PC-SERIAL-CARD) is designed to provide a reliable and efficient RS-232 serial connection for various applications. This adapter card enables users to connect serial devices to their PCI Express-enabled systems, ensuring seamless communication and data transfer.

Key Features

• 1 x RS-232 Serial Port (DB9) for versatile connectivity
• Supports bi-directional data rates of up to 921.6 Kbps
• Equipped with 16C1050 UART support for enhanced performance
• 256-byte FIFO for both transmit and receive operations
• Includes a low-profile bracket for compatibility with small form factor (SFF) systems
• LED indicators for transmit and receive activity
• Compatible with Windows and Linux operating systems

Specifications Highlights

• Interface: PCI Express
• Serial Port Type: DB9
• Data Rate: Up to 921.6 Kbps
• UART: 16C1050
• FIFO Buffer: 256-byte

Who It Is For

This serial card is ideal for users who need to connect legacy serial devices to modern computers. It is particularly suited for industrial applications, point-of-sale systems, and any environment where serial communication is essential. Whether you are upgrading an existing system or building a new one, the StarTech 1-Port PCI Express Serial Card provides the reliability and performance you need.
