100G LR QSFP 10KM LC CONN SINGLE MODE MSA P/N EQPT1H8LR1LCL100

Overview

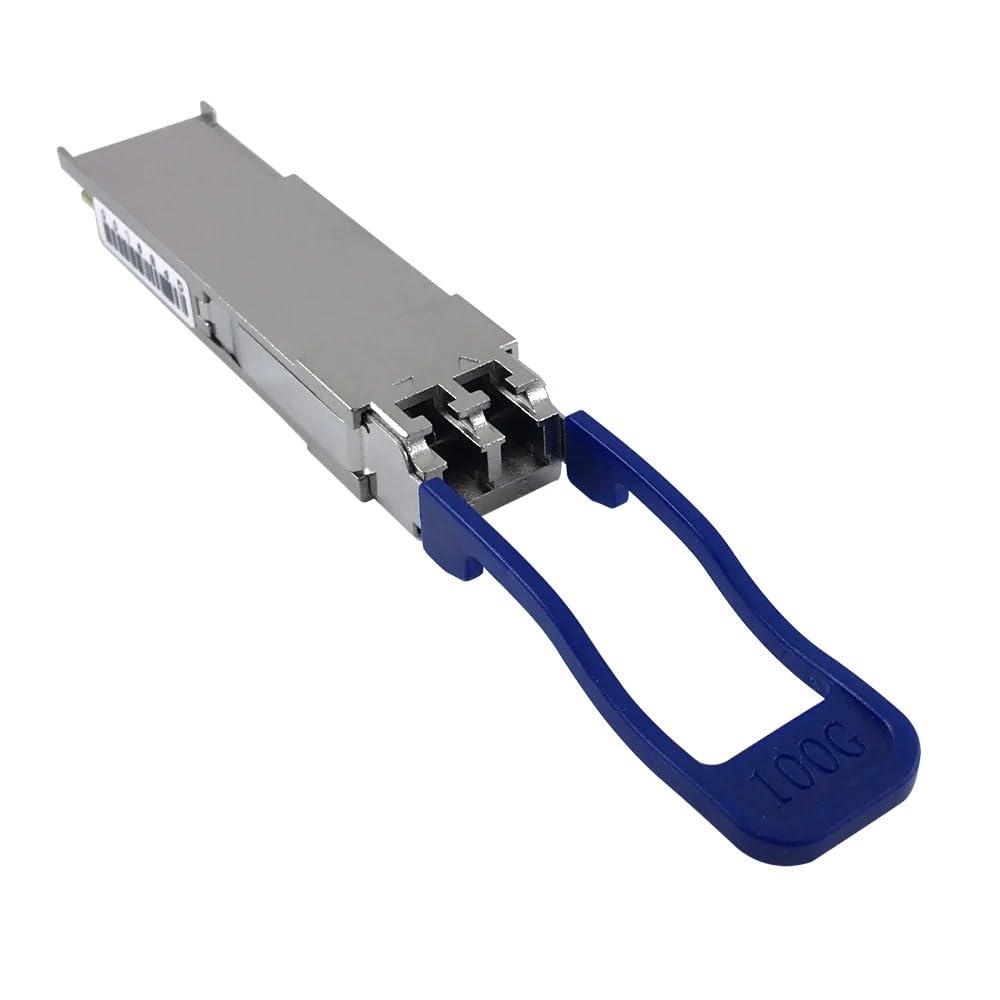

The Extreme Networks 100G LR QSFP (Quad Small Form-factor Pluggable) is a high-performance transceiver designed for long-range data transmission over single-mode fiber. This model, with a reach of up to 10 kilometers, is ideal for data centers and enterprise networks that require efficient and reliable connectivity.

Key Features

• Supports data rates of 100 Gbps
• 10 km reach over single-mode fiber
• LC duplex connector for easy installation
• Compliant with MSA (Multi-Source Agreement) standards
• Low power consumption for energy efficiency

Specification Highlights

• Wavelength: 1310 nm
• Transmitter Type: EML (Electro-absorption Modulated Laser)
• Receiver Type: PIN photodiode
• Operating Temperature: 0°C to 70°C
• Hot-pluggable for easy replacement

Who It's For

This transceiver is designed for network professionals and organizations looking to enhance their network infrastructure with high-speed and reliable fiber connectivity. It is particularly suitable for use in high-bandwidth applications such as data centers, cloud computing environments, and enterprise networks that require fast and efficient data transfer.
