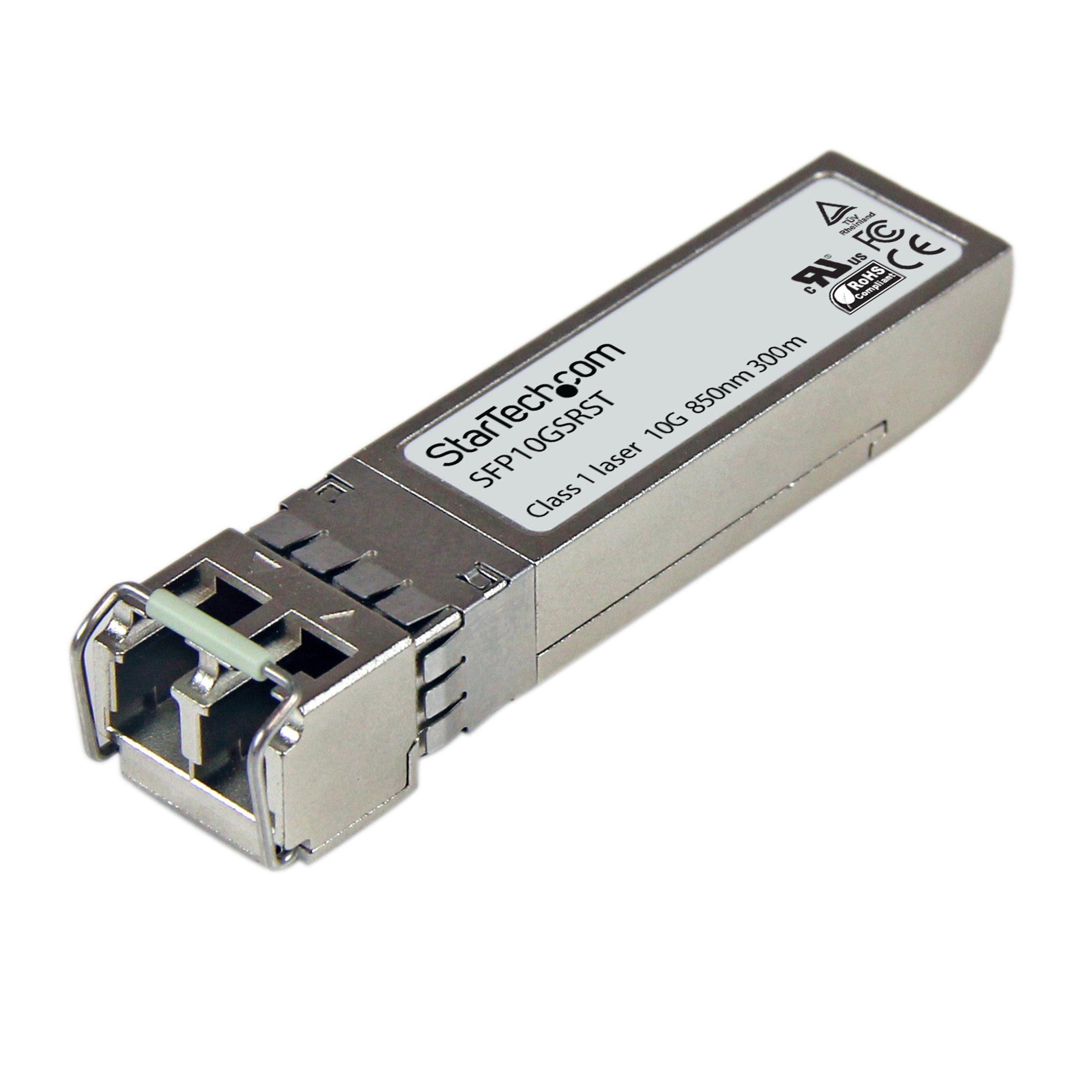

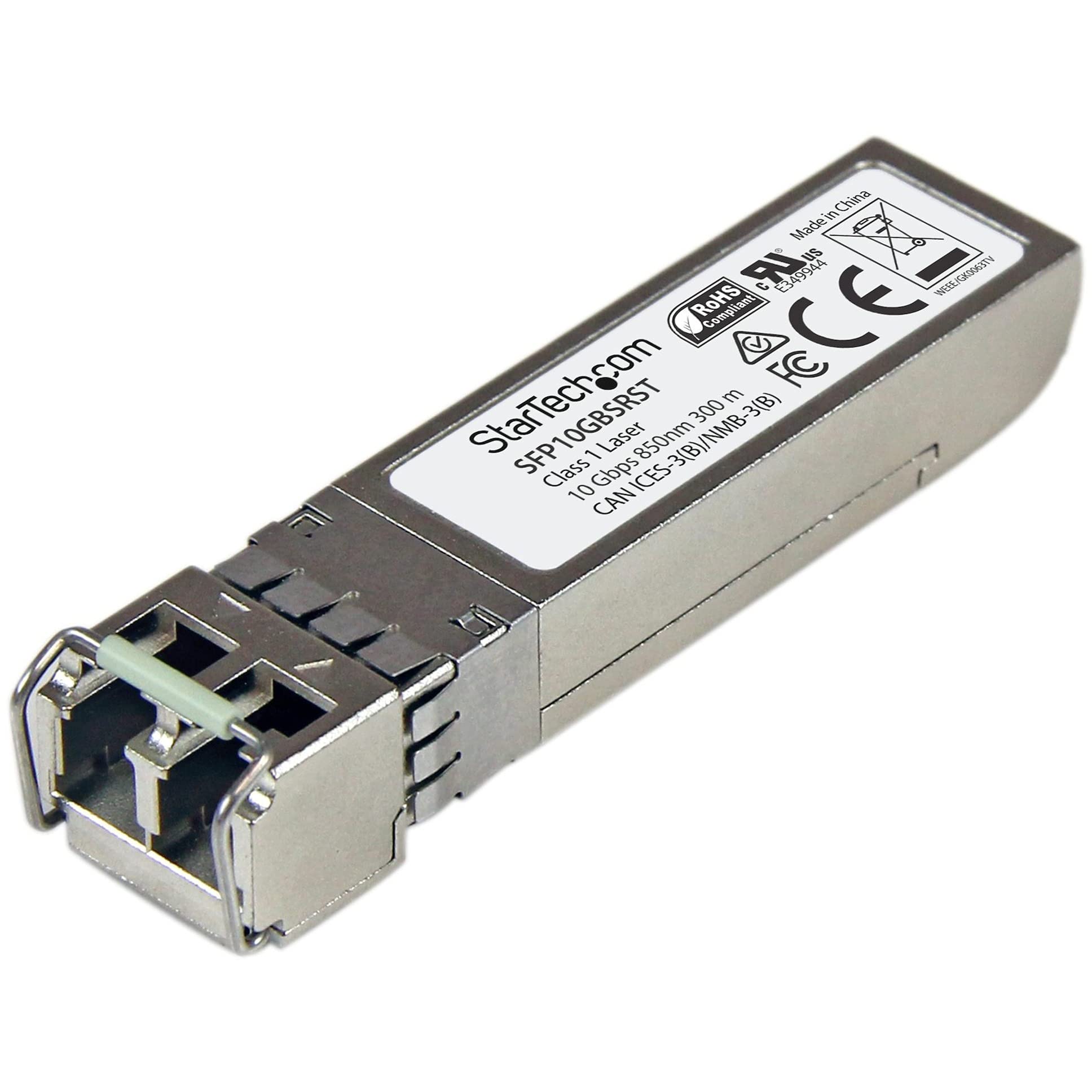

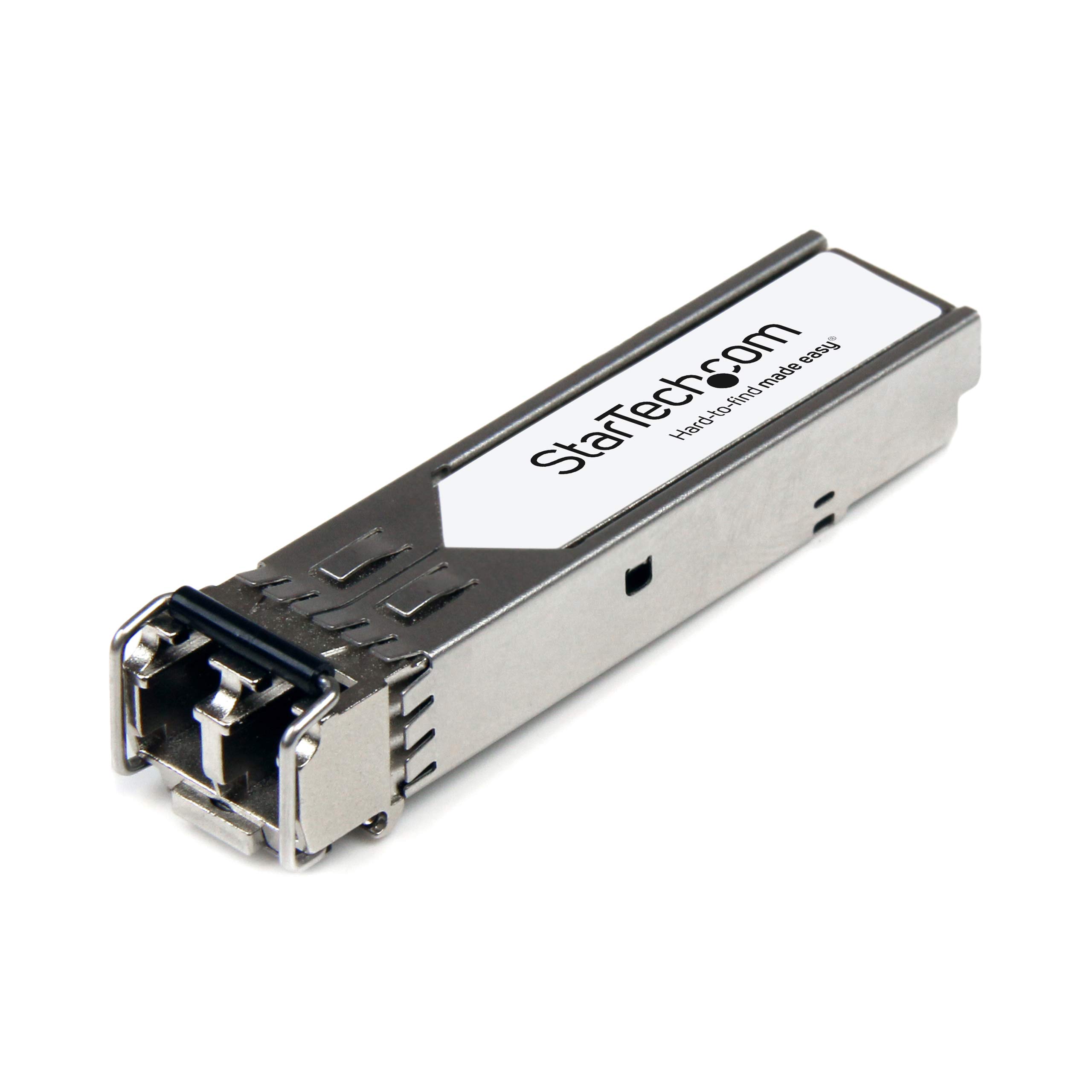

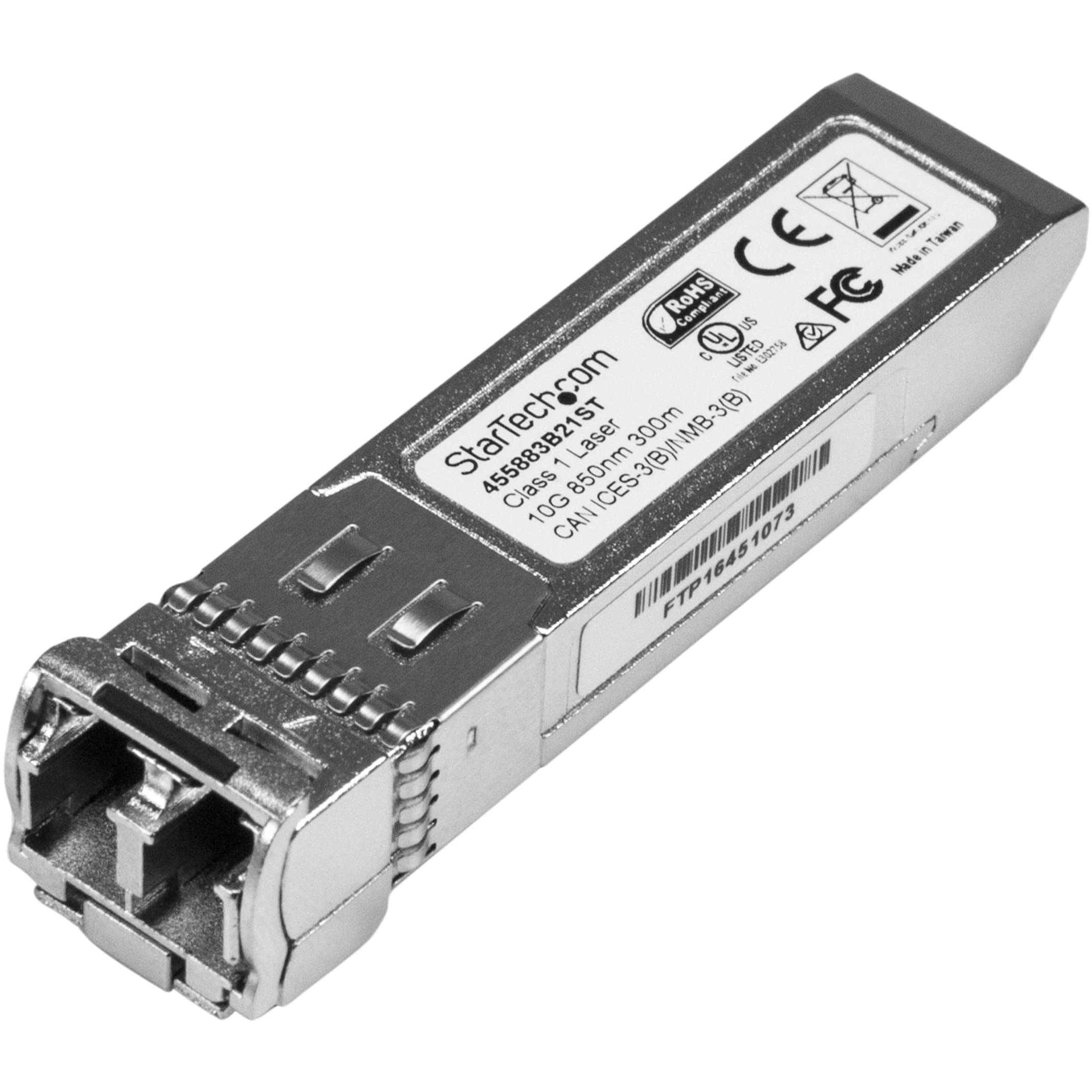

MSA UNCODED SFP+ - 10GBASE-SR 10GBPS - 10GBE MODULE - 10GE GIGABIT ETHERNET SFP+

Overview

The MSA Uncoded SFP+ 10GBASE-SR module is designed to provide high-speed connectivity for data center and enterprise networks. This 10Gbps transceiver module is ideal for short-range data transmission over multimode fiber, ensuring reliable performance in various networking applications.

Key Features

• Data Rate: 10Gbps
• Distance: Up to 300 meters on OM3 multimode fiber
• Wavelength: 850nm
• Connector Type: LC duplex
• Compliant with MSA SFF-8431 and SFF-8432 standards
• Hot-pluggable for easy installation and maintenance
• Low power consumption for energy efficiency

Specifications Highlights

• Form Factor: SFP+
• Operating Temperature: 0°C to 70°C
• Maximum Link Length: 400 meters on OM4 multimode fiber
• Digital Diagnostics Monitoring (DDM) capability

Who It Is For

This module is suitable for network administrators and IT professionals looking to upgrade their existing network infrastructure or expand their data center capabilities. It is an excellent choice for applications that require high bandwidth and low latency.
